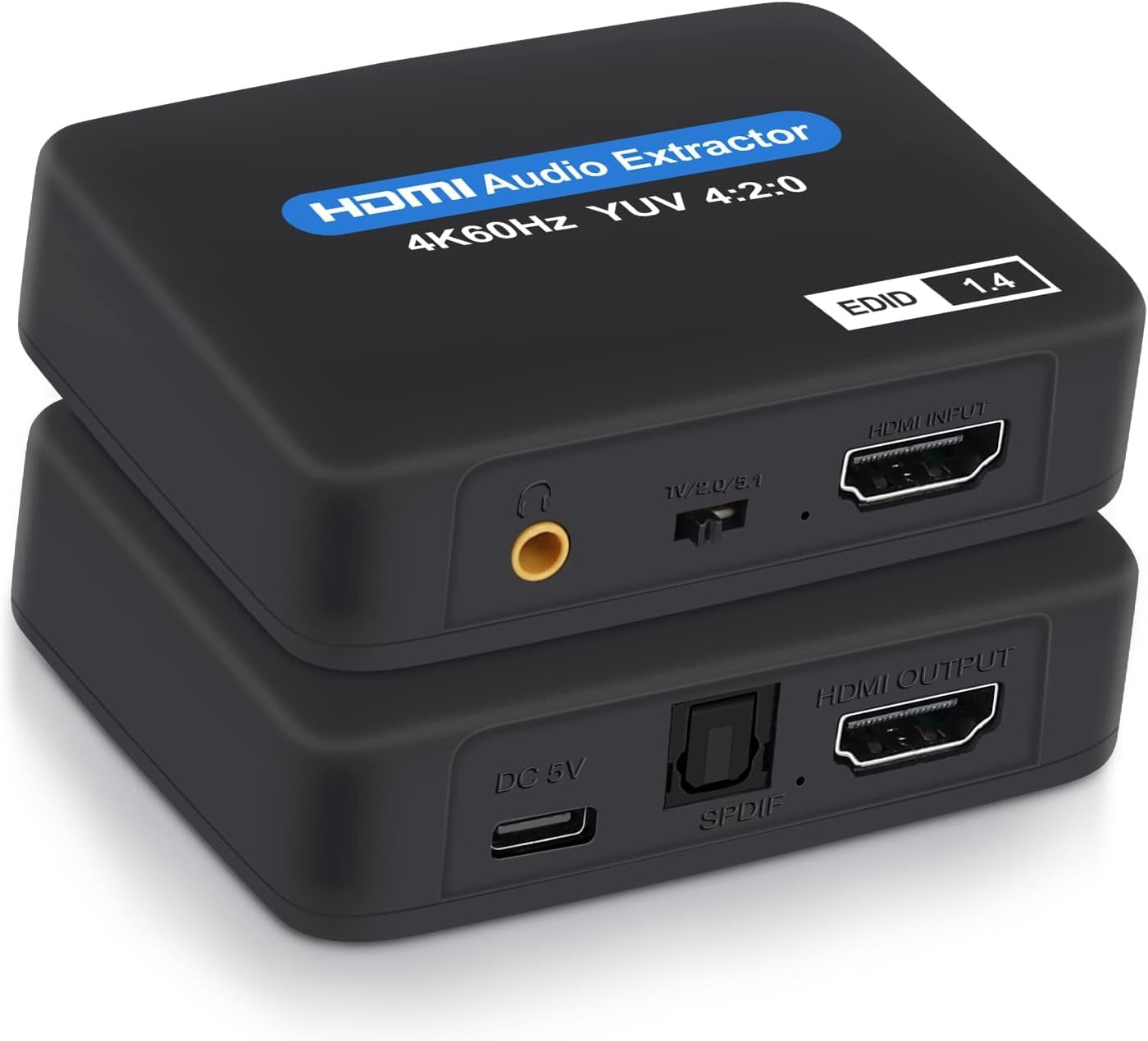

HDMI Audio Extractor 4K 60Hz, Optical Toslink SPDIF & 3.5mm Output, for Fire TV

1. This HDMI audio extractor allows you to separate audio from your 4K 60Hz video source, sending video to your display while routing sound to external speakers or headphones.

It features one HDMI input, one HDMI output, one Toslink SPDIF optical output, and one 3.5mm stereo audio output, giving you flexible connection options for soundbars, amplifiers, or wired headsets.

2. Three selectable EDID modes let you choose the audio format: TV mode, 2.0 CH (outputs stereo via both optical and 3.5mm), and 5.1 CH (outputs surround sound via optical). The 3.5mm output supports 2.0 PCM/LPCM stereo; the optical output supports 2.0 and 5.1 PCM inputs. For best results, set your source device to output PCM/LPCM audio.

3. This extractor works with a wide range of HDMI source devices, including Blu-ray/DVD players, Fire TV, PS5, Xbox, PC/laptops, HD cameras, and HD DVRs. It supports resolutions up to 4K 60Hz and is also backward compatible with 1080p 3D.

Note: Devices with low‑power HDMI ports (such as PS4 or PS4 Slim) may require the included USB power cable. We recommend using a power supply for reliable operation.

4. Package includes: 1 HDMI audio extractor converter, 1 USB power cable, and 1 instruction manual (Portuguese language not guaranteed). The product comes with a one‑year limited warranty. If you have any questions, please contact us through the Ask a Question button – we will respond within 24 hours.

Specifications

• Weight: 600 g
• Length: mm
• Width: mm
• Height: mm
