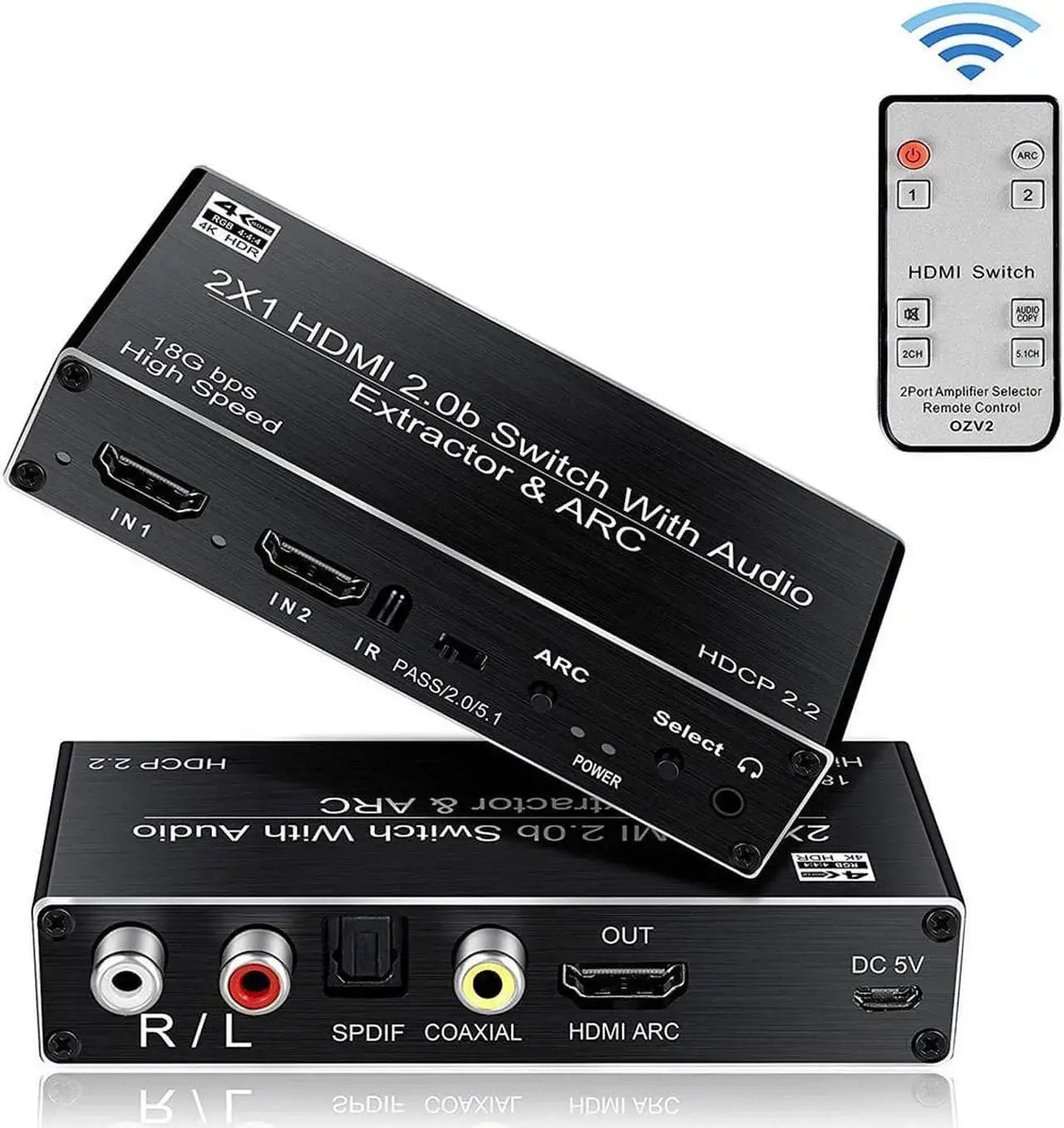

HDMI Switch 2x1 with Audio Extractor, 4K 60Hz, Optical/Coaxial/3.5mm Output

1. This 2x1 HDMI switch with audio extractor allows you to connect two HDMI sources to one display while extracting audio to separate outputs.
2. It features 2 HDMI inputs and 1 HDMI output with ARC function, plus Toslink (optical), Coaxial, L/R, and 3.5mm Jack audio outputs.
3. The coaxial and Toslink ports support audio return channel (ARC) for sending audio back from the TV. The 3.5mm Jack and L/R outputs extract audio from the HDMI signal but do not support ARC.
4. Supports video resolutions including 480i, 480p, 576i, 576p, 720p@50/60Hz, 1080p@50/60Hz, and 4Kx2K@20/30Hz with 24-bit RGB/YcbCR 4:4:4 or YcbCR 4:2:2.
5. Maximum bandwidth per channel is 600MHz, with a total baud rate of 18.5Gbps per display.
6. Compliant with HDMI 2.0 and HDCP 1.4/1.3/1.2/1.1 as well as HDCP 2.2.
7. Suitable for use with compatible source devices, displays, and audio/video equipment that have matching ports.

Specifications

• Weight: g
• Length: mm
• Width: mm
• Height: mm
